Product Model
SL05TPP08W
Product model:SL05TPP08W Description:FO Terminal Box, 8 Port, Wall Mounted, ST/SC/FC type available Dimension ( L×W×H ):2680mm×140mm×40mm

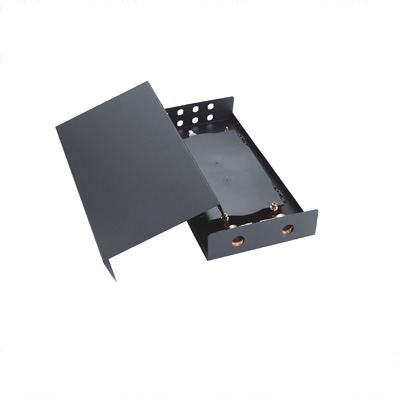

Product images
FEATURES:
1. The shell is high intensified & insulated material, thus having excellent mechanic
performance ,It is solid and durable
2. Fiber in put: 2
3. Adapters output: 6
4. Strength core and shell was Insulation,add with grounding lead
5. Can be installed against wall
6. Full accessories for convenient operations
PERFORMANCE：
1. Excellent design
2. Maximum cores 6
3. Fiber lead 、grounding and perfect fixup 、 reliable
4. Pigtail fixup reliable and perfect protection
5. Apply to extensive field
6. Convenient operations and maintenance
Product parameters
1. Environment temperature：－25℃～＋45℃
2. Relative humidity：≤85%（30℃）
3. Atmosphere pressure：70～106KPa
4. Insulated Resistance：≥2×10MΩ/500V（DC）
5. Intensity≤15KV(DC)/1minno spark-over and no flying arc
6. Fiber bending radium guaranteed more than 40mm：≥40mm
Application: It is applicable for straight-through connection and diverged
connection in aerial layout , duct and direct buried. It can protect fiber
connectors.
Ordering Information
ORDERING INFORMATION：
Product Code | Description | Packaging | Carton Size | GW |
SL05TPP08W | FO Terminal Box, 8 Port, Wall Mounted, ST/SC/FC type available | 10 PCS | 49*40*70 cm | -- |
