Product Model
SPP-9562D1
Product parameters
Main Description of The Product:

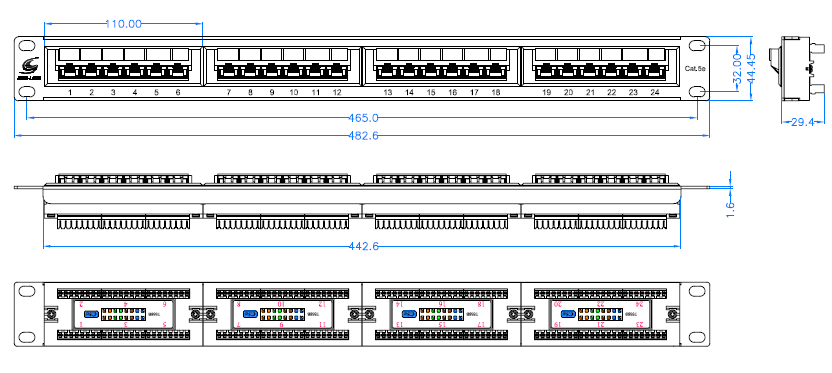

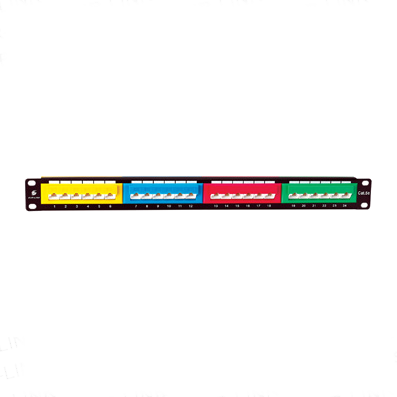

1. 24 ports patch panel, Cat.5e UTP type. Dust free and masterly 45°incline port,
protect the patch cord from bending too much. The structure of each port of this
patch panel is same which makes sure that the performance of each port is
consistent.
2. According to the standard of ISO/IEC 11801:2002 CLASS D and ANSI/TIA/EIA/568B.2
Cat.5e standard. T568A punching sequence and T568B punching sequence are both
compatible. Fitting for horizontal distribution in the equipments room and
equipments connecting.
3. Connecting: FCC port for Cat.5e UTP patch cord and IDC for horizontal distribution
cables.
4. Compatibility: Compatible for UTP Cat.5e general cable distribution systems.
5. IDC: 110 type or dual use type for your choice.
1. Entire high-carbon steel outer frame, with plastic powder cladding.
2. RJ45 jack frame material: PBT, golden plated phosphor bronze pins, Shielding shell
of the RJ45 jack: Brass housing with nicket-plated; IDC clip: Tinned phosphor
bronze pins.
3. Fitting for 22AWG/23AWG/24AWG cables, punching duration: 250 times. FCC ports
inserting duration: 750 times.
4. Cabling sequence: T568A & B.
5. Punching tool: Standard 110 tool for 110 IDC, Standard 110 tool or LSA tool for
dual IDC.
6. Testing condition of transmitting capability: 100MHz
Ordering Information
Product Code | Description | Packaging | Carton Size | GW |
SPP-9562D1 | UTP Cat.5e Patch Panel, 24 Port, 45 degree, LSA& 110 Dual Use IDC | 15 PCS | 53*29*32 cm | 12 kg |
