Product Model

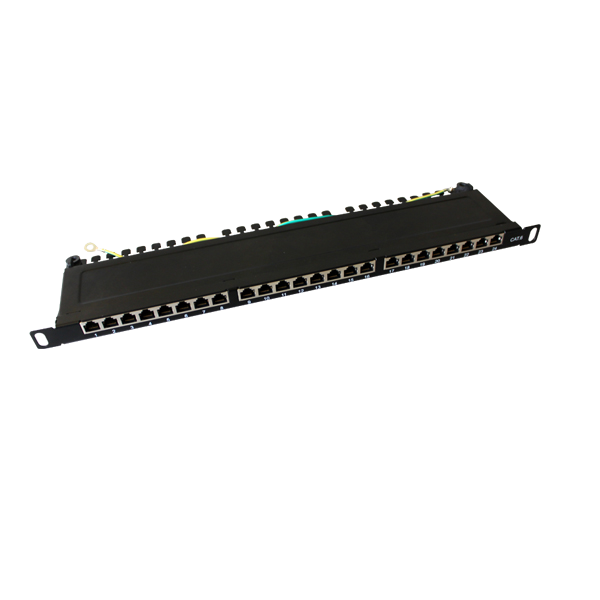

SPP-UA62L1 SPP-U762L1
Product parameters
NOTES:
ELECTRICAL:
1. Voltage rating: 125 VAC RMS
2. Current rating: 1.5 AMP
3. Contact resistance: 20 Milliohms MAX
4. Insulation resistance: 100 Megohms MIN @ 500 VDC
5. Dielectric strength: 750 VAC RMS 60Hz, 1MIN
MECHANICAL：
1. Housing material: PBT+30%GF
2. PANEL FLAME:ST-12, T=1.6, POWDER COATING IN BLACK COLOR
3. IDC material: PC, CONTACT:PHOSPHOR BRONZE, TIN PLATED
4. RJ45 JACK LIFE: 750 TIMES MIN
5. IDC LIFE: 200 TIMES MIN
6. WIRE: AWG 22~24
7. TIA Cat 6 Perm. Link Test: Worst pair NEXT margin≥ 3.0dB
8. Retentiveness of insertion structure: 50N 60±5s
ENVIRONMENTAL：
1. Storage: -40°TO +70°
2. Operation: -10°TO +60°
Mates with modular plug conforming to FCC part 68, Subpart F.
Ordering Information
Product Code | Description | Packaging | Carton Size | GW |
| SPP-U762L1 | Cat.5E 0.5U FTP Patch Panel，24 ports，with back bar | 5 PCS | 58*19*28 cm | 8 Kg |
SPP-UA62L1 | Cat.6 0.5U FTP Patch Panel，24 ports，with back bar | 5 PCS | 58*19*28 cm | 8 Kg |
