Product Model
SPP-U662L1 SPP-U962L1 SPP-UC62L1

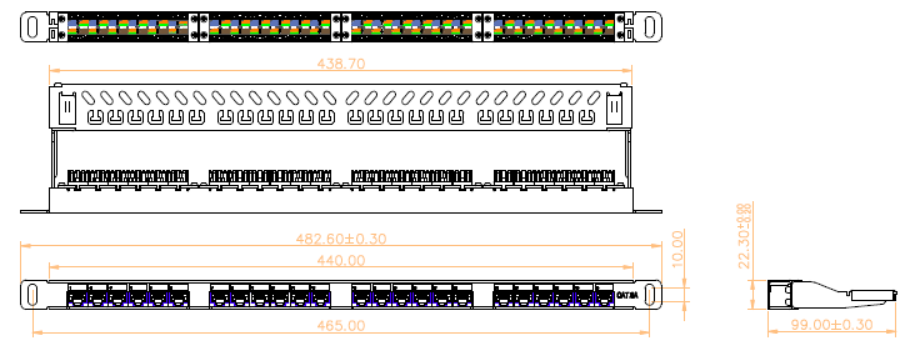

Product parameters
NOTES:
ELECTRICAL:
1. Voltage rating: 125 VAC RMS
2. Current rating: 1.5 AMP
3. Contact resistance: 20 Milliohms MAX
4. Insulation resistance: 100 Megohms MIN @ 500 VDC
5. Dielectric strength: 750 VAC RMS 60Hz, 1MIN
ENVIRONMENTAL：
1. Storage: -40°TO +70°
2. Operation: -10°TO 60°
Mates with modular plug conforming to FCC part 68, Subpart F.
MECHANICAL：
1. Housing material: PBT+30%GF
2. PANEL FLAME:ST-12, T=1.6, POWDER COATING IN BLACK COLOR
3. IDC material: PC, CONTACT:PHOSPHOR BRONZE, TIN PLATED
4. RJ45 JACK LIFE: 750 TIMES MIN
7. IDC LIFE: 200 TIMES MIN
8. WIRE: AWG 22~24
9. TIA Cat 6A Perm. Link Test: Worst pair NEXT margin≥ 3.0dB
10. Retentiveness of insertion structure: 50N 60±5s
Ordering Information
Product Code | Description | Packaging | Carton Size | GW |
SPP-U662L1 | Cat.5e 0.5U UTP Patch Panel，24 ports，without back bar | 30 PCS | 53*29*32 cm | - |
SPP-U962L1 | Cat.6 0.5U UTP Patch Panel，24 ports，without back bar | 30 PCS | 53*29*32 cm | - |
SPP-UC62L1 | Cat.6A 0.5U UTP Patch Panel，24 ports，without back bar | 30 PCS | 53*29*32 cm | - |
