Product Model
SPP-9962L1
Product parameters
Main Description of The Product:

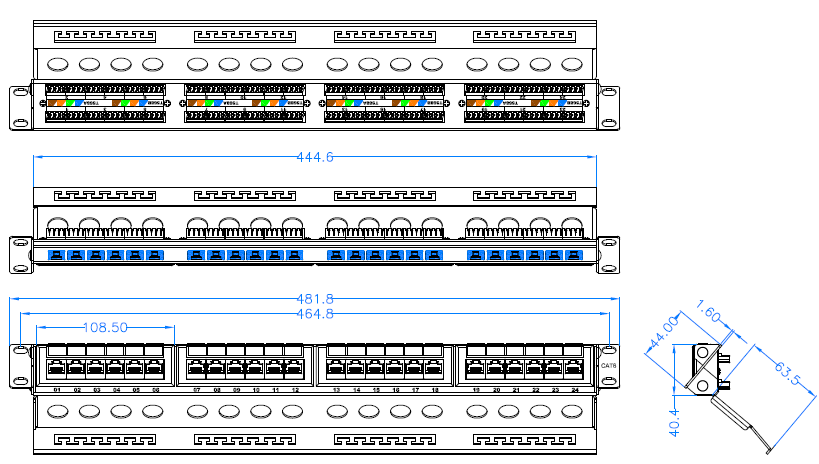

1. 24 ports patch panel, Cat.6 UTP type. Dust free and masterly 45°incline port,
protect the patch cord from bending too much. The structure of each port of this
patch panel is same which makes sure that the performance of each port is
consistent.
2. The cable management is combined in this patch panel. All kinds of cables with
different dimensions can be fixed on the patch panel.
3. According to the standard of ISO/IEC 11801:2002 CLASS E and ANSI/TIA/EIA/568B.2-1
Cat.6 standard. T568A punching sequence and T568B punching sequence are both
compatible. Fitting for horizontal distribution in the equipments room and
equipments connecting.
4. Connecting: FCC port for Cat.6 UTP patch cord and IDC for horizontal distribution
calbes.
5. Compatibility: Compatible for UTP Cat.6 or Cat.5e、Cat.5 general cable
distribution systems.
1. Entire high-carbon steel outer frame, with plastic powder cladding.
2. RJ45 jack frame material: PBT, golden plated phosphor bronze pins; Shielding shell
of the RJ45 jack: Brass housing with nickel-plated. IDC clip: Tinned phosphor
bronze pins.
3. Fitting for 22AWG/23AWG/24AWG cables, punching duration: 250 times. FCC ports
inserting duration: 750 times.
4. Cabling sequence: T568A & B
5. Punching tools: standard LSA type or 110 type punching tool. (According to the IDC
port you chose, LSA or 110 type ).
6. Testing condition of transmitting capability: 250MHz.
Ordering Information
Product Code | Description | Packaging | Carton Size | GW |
SPP-9962L1 | UTP Cat.6 Patch Panel, 24 Port, 45 degree, with back bar, LSA IDC | 10 PCS | 55*27*27 cm | 13 kg |
