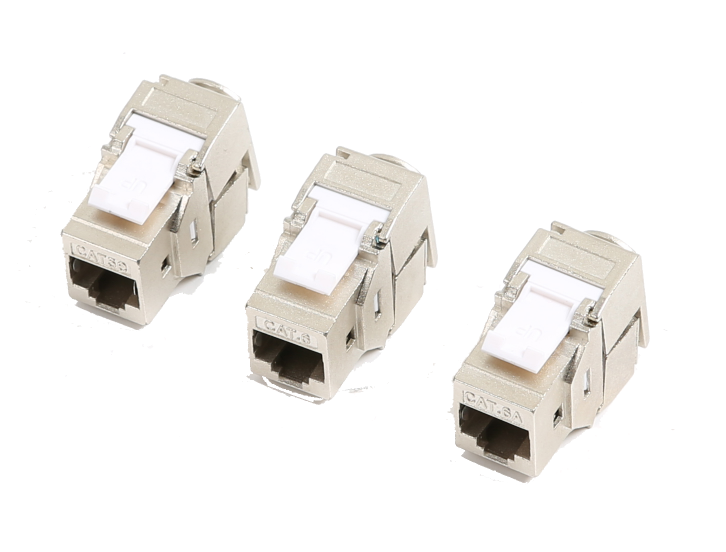

Product Model
SKJ-AC2101-8 SKJ-AA2101-8 SKJ-AD2101-8
Product parameters
ELECTRICAL:
1. Voltage rating: 125 VAC RMS
2. Current rating: 1.5 AMP
3. Contact resistance: 20 Milliohms MAX
4. Insulation resistance: 100 Megohms MIN @ 500 VDC
5. Dielectric strength: 750 VAC RMS 60Hz, 1MIN
ENVIRONMENTAL：
1. Storage: -40°TO +70°
2. Operation: -10°TO 60°
Mates with modular plug conforming to FCC part 68, Subpart F.
MECHANICAL：
1. Housing material: ZINC ALLOY
2. Insert material: FLAME RETARDANT PC
3. PCB material: FR-4T=1.2mm
4. Contact material: Phosphor bronze stamp PIN T=0.35mm
5. IDC contact material: Phosphor bronze T=0.50mm WITH TIN PLATING
6. RJ45 JACK LIFE: 750 TIMES MIN
7. IDC LIFE: 200 TIMES MIN
8. WIRE: AWG 22~24
9. TIA Cat 5e Perm. Link Test: Worst pair NEXT margin≥ 5.0dB
10. Retentiveness of insertion structure: 50N 60±5s
Ordering Information
Product Code | Description | Packaging | Carton Size | GW |
SKJ-AC2101-8 | FTP Cat.5e Keystone Jack 180 degree | 500 PCS | 40*29*53 cm | 18.3 kg |
SKJ-AA2101-8 | FTP Cat.6 Keystone Jack 180 degree | 500 PCS | 40*29*53 cm | 18.3 kg |
SKJ-AD2101-8 | FTP Cat.6A Keystone Jack 180 degree | 500 PCS | 40*29*53 cm | 18.3 kg |
