SPP-6832A1 SPP-6532D1

SPP-6832A1 : UTP Cat.6 Patch Panel, 12 Port, Wall-Mounted type, 110 IDC

SPP-6532D1 : UTP Cat.5e Patch Panel, 12 Port, Wall-Mounted Dual use IDC

Add List

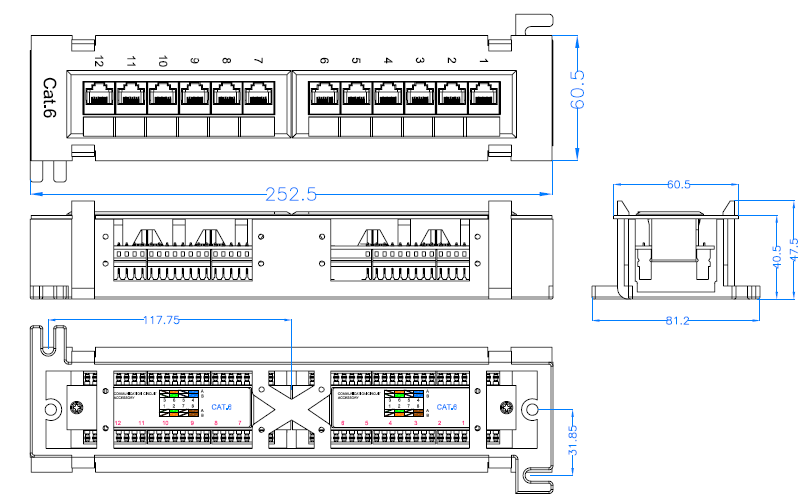

Product images

Main Description of The Product:
1.  12 ports patch panel, Cat.6 UTP type. The strcture of each port of this patch
     panel is same which makes sure that the performance of each port is consistent.
2.  According to the standard of ISO/IEC 11801:2000 CLASS E and ANSI/TIA/EIA/568B.2-1
     Cat.6 standard. T568A punching sequence and T568B punching sequence are both
     compatible. Fitting for horizontal distribution in the equipments room and
     equipments connecting.
3.  Connecting: FCC port for Cat.6 UTP patch cord and IDC for horizontal distribution
     cables.
4.  Compatibility: Compatible for UTP Cat.6 or Cat.5e、 Cat.5 general cable
     distribution systems.
5.  IDC: 110 type or LSA type for your choice.

Product parameters

Technique Characteristics:
1.  Entire high-carbon steel outer frame, with plastic powder cladding.
2.  RJ45 jack frame material: PBT, golden plated phosphor bronze pins, Shielding shell
     of the RJ45 jack: Brass housing with nicket-plated; IDC clip: Tinned phosphor
     bronze pins.
3.  Fitting for 22AWG/23AWG/24AWG cables, punching duration: 250 times. FCC ports
     inserting duration: 750 times.
4.  Cabling sequence: T568A & B.
5.  Punching tool: Standard 110 tool for 110 IDC, Standard LSA tool for dual IDC.
6.  Testing condition of transmitting capability: 250MHz

Ordering Information

Product Code	Description	Packaging	Carton Size	GW
SPP-6832A1	UTP Cat.6 Patch Panel, 12 Port, Wall-Mounted type, 110 IDC	20 PCS	562038 cm	9.5 kg
SPP-6832D1	UTP Cat.5e Patch Panel, 12 Port, Wall-Mounted Dual use IDC	20 PCS	562038 cm	9.5 kg
