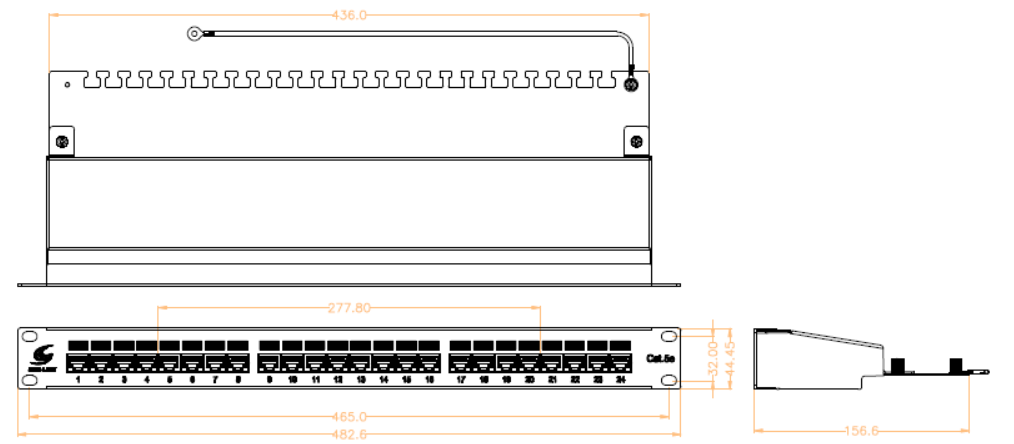

SPP-0762L1

Product Model

SPP-0762D1 SPP-0762L1 SPP-0762H1

Add List

Product parameters


Main Description of The Product:
1.  24 ports patch panel, Cat.5e FTP type. The structure of each port of this patch
     panel is same which makes sure that the performance of each port is consistent.
2.  The outstanding shielding effect. The cabel management and grounding device are
     combined in this patch panel. All kinds of cables with different dimensions can
     be fixed on the patch panel. The shielding foil of the cables and the grounding
     device of the patch panel can be connected availably.
3.  According to the standard of ISO/IEC 11801:2002 CLASS D and ANSI/TIA/EIA/568B
     Cat.5e standard. T568A punching sequence and T568B punching sequence are both
     compatible. Fitting for horizontal distribution in the equipments room and
     equipments connecting.
4.  Connecting: FCC port for Cat.5e STP patch cord and IDC for horizontal distribution cables.
5.  Compatibility: Compatible for FTP Cat.5e general cable distribution systems.


Technique Characteristics:
1.  Entire high-carbon steel outer frame, with plastic powder cladding.
2.  RJ45 jack frame material: PBT, golden plated phosphor bronze pins, Shielding shell
     of the RJ45 jack: Brass housing with nicket-plated; IDC clip: Tinned phosphor
     bronze pins.
3.  Fitting for 22AWG/23AWG/24AWG cables, punching duration: 250 times. FCC ports inserting duration: 750 times.
4.  Cabling sequence: T568A & B.
5.  Punching tool: Standard LSA tool.
6.  Testing condition of transmitting capability: 100MHz

Ordering Information


Product CodeDescriptionPackagingCarton SizeGW
SPP-0762H1FTP Cat.5e Patch Panel, 24 Port, 110 IDC5 PCS55*20*27 cm12 kg
SPP-0762L1FTP Cat.5e Patch Panel, 24 Port, LSA IDC5 PCS55*20*27 cm12 kg
SPP-0762D1FTP Cat.5e Patch Panel, 24 Port, Dual use IDC5 PCS55*20*27 cm12 kg
