Product parameters
Main Description of The Product:

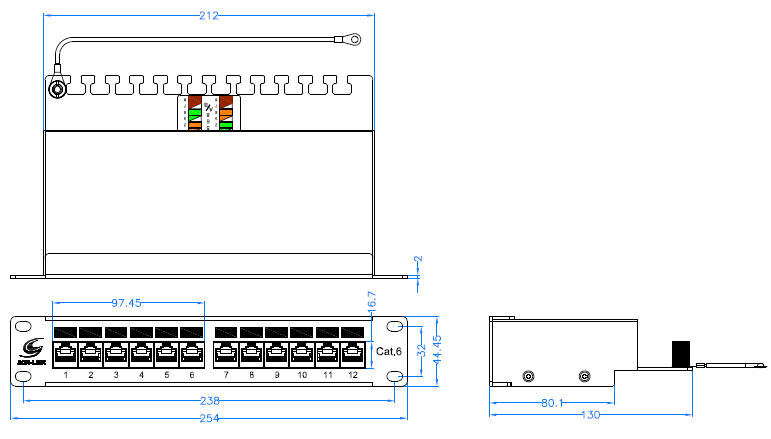

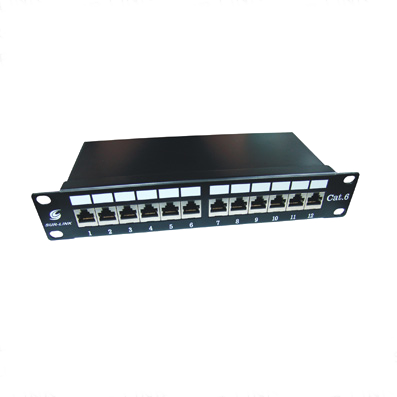

1. 12 ports patch panel, Cat.6 FTP type. The structure of each port of this patch
panel is same which makes sure that the performance of each port is consistent.
2. The outstanding shielding effect: The cabel management and grounding device are
combined in this patch panel. All kinds of cables with different dimensions can
be fixed on the patch panel. The shielding foil of the cables and the grounding
device of the patch panel can be connected availably.
3. According to the standard of ISO/IEC 11801:2000 CLASS E and ANSI/TIA/EIA/568B.2-1
Cat.6 standard. T568A punching sequence and T568B punching sequence are both
compatible. Fitting for horizontal distribution in the equipments room and
equipments connecting.
4. Connecting: FCC port for Cat.6 FTP patch cord and IDC for horizontal distribution
cables.
5. Compatibility: Compatible for FTP Cat.6 or Cat.5e、 Cat.5 general cable
distribution systems.
6. IDC: 110 type or LSA type for your choice.
1. Entire high-carbon steel outer frame, with plastic powder cladding.
2. RJ45 jack frame material: PBT, golden plated phosphor bronze pins, Shielding shell
of the RJ45 jack: Brass housing with nicket-plated; IDC clip: Tinned phosphor
bronze pins.
3. Fitting for 22AWG/23AWG/24AWG cables, punching duration: 250 times. FCC ports
inserting duration: 750 times.
4. Cabling sequence: T568A & B.
5. Punching tool: Standard LSA tool.
6. Testing condition of transmitting capability: 250MHz
Ordering Information
Product Code | Description | Packaging | Carton Size | GW |
SPP-2A32L1 | FTP Cat.6 Patch Panel, 12 Port, LSA IDC, 10〞 | 5 PCS | 55*20*27 cm | 10 kg |
