Product Model
SPP-0BA2D1 SPP-0BA2L1

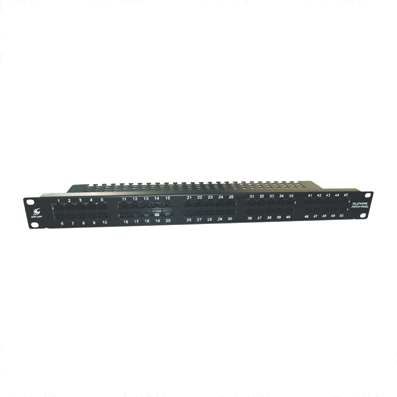

SPP-0BA2L1 : 1U UTP Telephone Panel, 50 Port, LSA IDC (with 1 pc PCB inside)
SPP-0BA2L1 : 1U UTP Telephone Panel, 50 Port, Dual ues IDC(with 1 pc PCB inside)
Product parameters
Main Description of The Product:

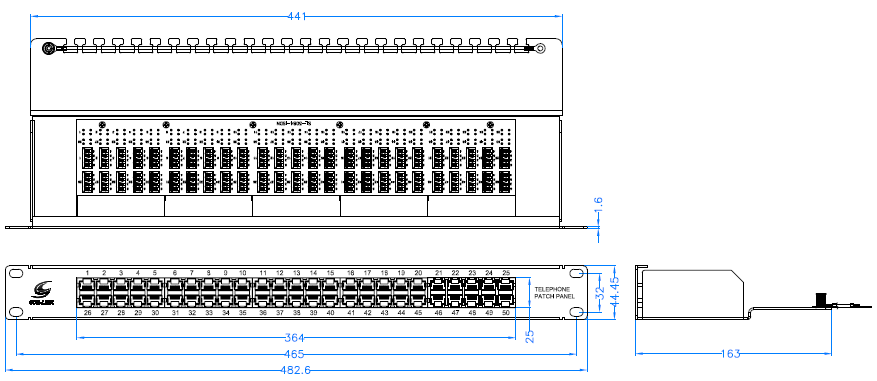

1. 1U size 50 ports Cat.3 ISDN patch panel, can be used in standard 19’ cabinet.
2. The cable manager is combined in this patch panel. All kinds of cables with
different dimensions can be fixed on the patch panel.
3. Connecting: FCC port for RJ45 Cat.3 patch cord and IDC for horizontal distribution
cables.
1. Entire high-carbon steel outer frame, with plastic powder cladding.
2. RJ45 jack frame material: PBT, 8 pin of the RJ45 jack: phosphor bronze with
golden plated 6 inch、15inch、30inch、50 inch at potion; Shielding shell of the
RJ45 jack : Brass housing with nickel-plated; IDC clip: Tinned phosphor bronze
pins.
3. Fitting for 22AWG/23AWG/24AWG cables, punching duration: 250 times. FCC ports
inserting duration: 750 times.
4. IDC: 6-3& 5-4 LSA-plus type.
Ordering Information
Product Code | Description | Packaging | Carton Size | GW |
SPP-0BA2L1 | UTP Telephone Panel, 50 Port, LSA IDC(with 1pc PCB inside) | 5 PCS | 55*20*27 cm | 9.1 kg |
SPP-0BA2D1 | UTP Telephone Panel, 50 Port, Dual ues IDC(with 1 pc PCB inside) | 5 PCS | 55*20*27 cm | 9.1 kg |
