SL6CB2321

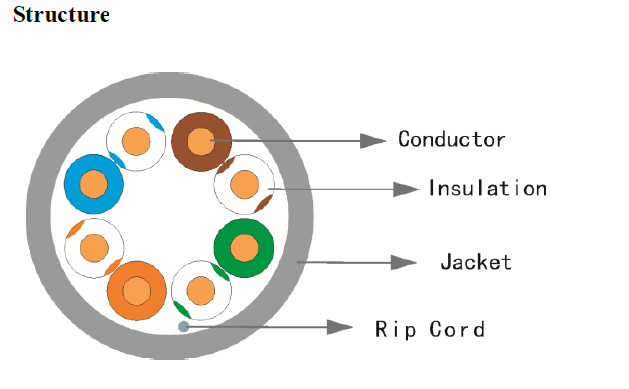

Conductor:

Material : solid bare copper

Diameter: 0.57+0.005mm /23 AWG

Insulation:

Material: HDPE

Diameter: 1.12±0.05mm

Cross Filler:yes

Polyester Tape:

Overlap rate:≥ 25%

Al foil:

Overlap rate:> 25%

Drain wire: 1*0.4mm tinned copper

Rip Cord: optional

Jacket:

Material: PVC/LSZH

Diameter: 7.5 土0.5mm

Thickness: 0.55mm (Average)

Physical Characteristics

Conductor Elongation ratio:≥15%

Insulation Tensile strength:≥16MPa

Insulation Elongation ratio:≥300%

LSZH Jacket Tensile strength LSZH: > 10MPa

LSZH Jacket Elongation ratio LSZH:≥125%

PVC Jacket Tensile strength PVC:≥13.5MPa

PVC Jacket Elongation ratio PVC:≥ 150%

Electrical Characteristics (20°C )

L inear Resistance:≤9. 52/100m

Insulation Resistance:≥5000MQ.km

Characteristic Impedance:100士152

Dielectric Strengt:DC.1kV.1 min no breakdown

Install info

working temperature: -20°C to +60°C

Bending radius:≥10 X out diameter

Standard

Complies with Class E & Cat 6 standards,Supports applications up to 250MHz.

ISO/IEC 11801, YD/T1019, TIA568.2-D, EN50173, RoHS 2011/65/EU, REACH EC 1907/2006
