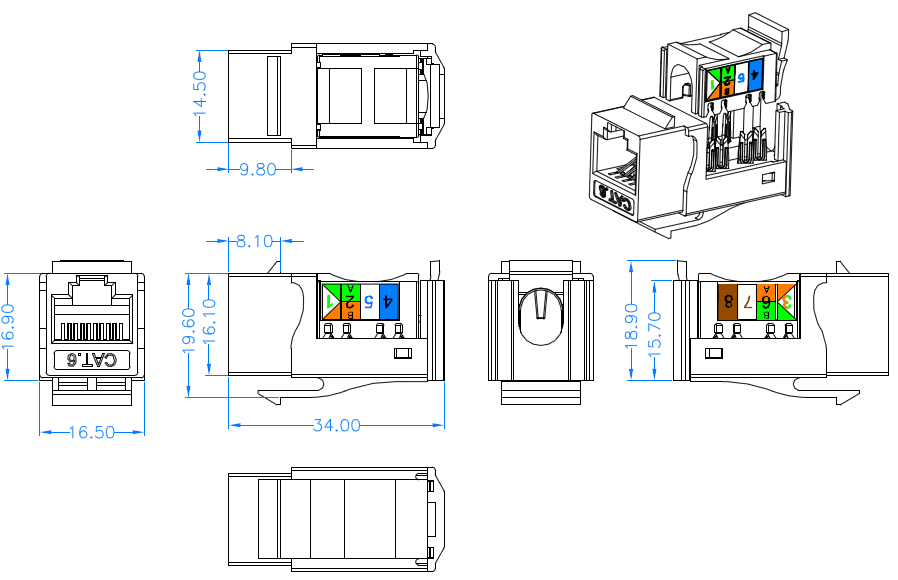

SKJ-763101 SKJ-733101

Main Description Of The Product：

1.  90°Tooless unshielded KJ. The products are used in the equipment rooms & work
     area  as communication connectors of the intelligent buildings.

2.  The structure of the Keystone Jack is compact and tooless. This design is based on
     contemporaneity aesthetics. The original dust free tooless punching hats can
     make your work more easy and fast, and it can also prevent the cable from
     slipping off from the IDC ports.

3.  According to the standard of ISO/IEC 11801:2002 Class E & ANSI/TIA/EIA 568-B.2-1
     CAT.6 standard.

4.  According the regnirement of T568A & T568B. The T568A & T568B labels are sticked
     on the both sides of the product to give a exact guide when a engineer punches
     the cables.

5.  Connecting: RJ45 port for UTP patch cord and the IDC port for UTP horizontal
     cabling.

6.  In accordance with RoHS derective.

7.  Fitting for Cat.6 cabling systems, can also be used on Cat.5 and Cat.5e cabling
     systems.

Technique Characteristics：

1.  Housing and other plastic parts’ material: PC UL94V-0

2.  8 pin of the RJ45 jack: Phosphor bronze with golden plated 3U、6U、15U、30U、50U
      at option. Inserting duration: 750 times.

3.  IDC Clips: Tinned phosphor bronze pins. Fitting for 22AWG/23AWG/24AWG cables.
      Punching duration: 250 times.

4.  Punching tool: tooless type.

5.  Testing condition of transimitting capability: 250MHz
