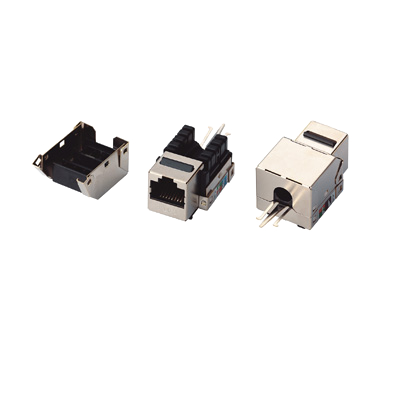

Product Model
SKJ-250001 SKJ-270001
Product parameters
ELECTRICAL:
1. Voltage rating: 125 VAC RMS
2. Current rating: 1.5 AMP
3. Contact resistance: 100 Milliohms MAX
4. Insulation resistance: 1000 Megohms MIN @ 500 VDC
5. Dielectric strength: 750 VAC RMS 60Hz, 1MIN
ENVIRONMENTAL：
1. Storage: -40°TO +85°
2. Operation: 0°TO 70°
Conform to TIA/EIA 568B Category 5e
Mates with modular plug conforming to FCC part 68, Subpart F.

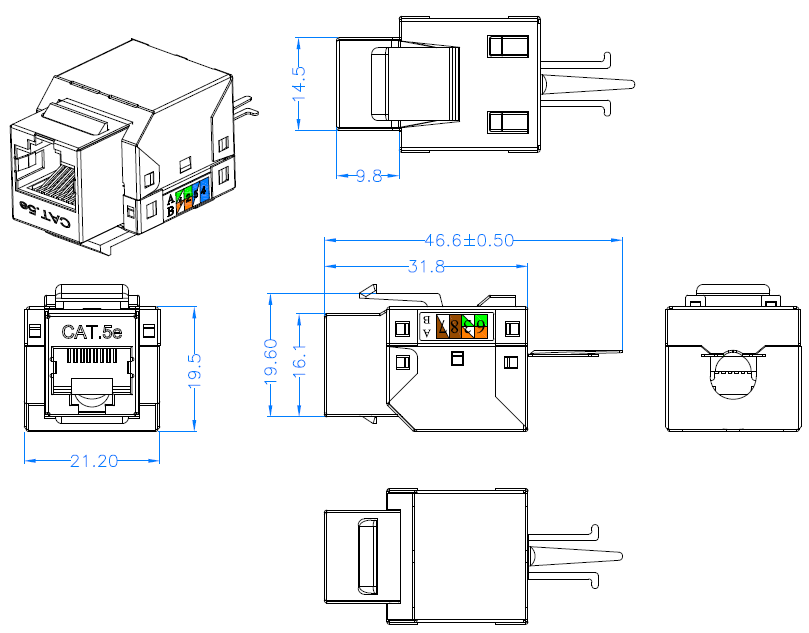

MECHANICAL：
1. Shield material: Brass T=0.30mm Nickel plating
2. Housing material: PC UL94V-0
3. Insert material: Flame retardancy ABS UL94V-0
4. PCB material: FR-4 Thickness:1.6mm
5. Contact material: Phosphor bronze stamp PIN T=0.35mm
6. IDC Contact material: Phosphor bronze T=0.50mm with nickel plating
7. Wire: AWG 24-26
Ordering Information
Product Code | Description | Packaging | Carton Size | GW |
SKJ-270001 | FTP Cat.6 Keystone Jack | 500 PCS | 40*29*53 cm | 11 kg |
SKJ-250001 | FTP Cat.5e Keystone Jack | 500 PCS | 40*29*53 cm | 11 kg |
