Product parameters
ELECTRICAL:
1. Voltage rating: 125 VAC RMS
2. Current rating: 1.5 AMP
3. Contact resistance: 100 Milliohms MAX
4. Insulation resistance: 1000 Megohms MIN @ 500 VDC
5. Dielectric strength: 750 VAC RMS 60Hz, 1MIN
ENVIRONMENTAL：
1. Storage: -40°TO +85°
2. Operation: 0°TO 70°
Conform to TIA/EIA 568B Category 3
Mates with modular plug conforming to FCC part 68, Subpart F.

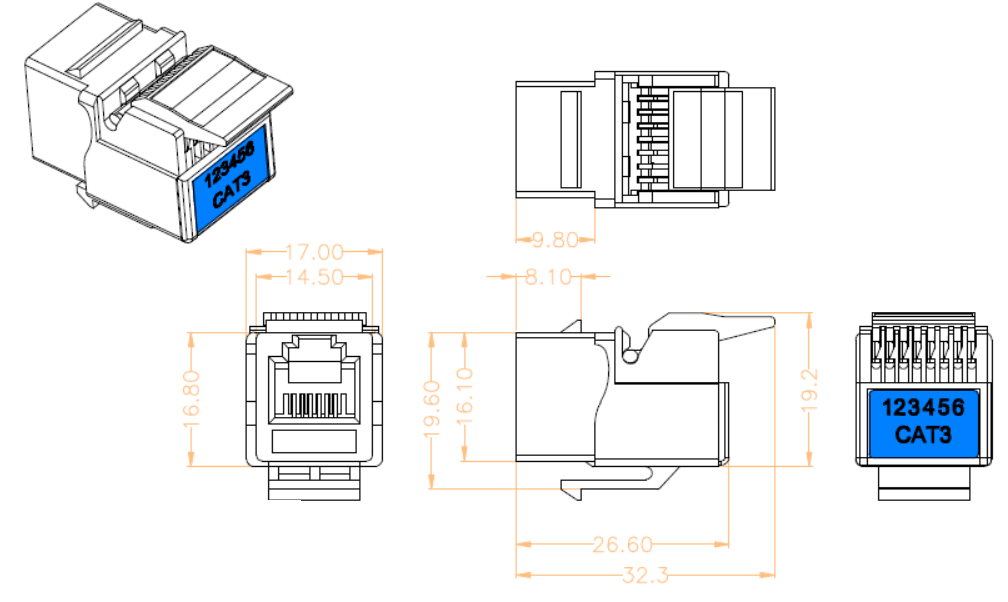

MECHANICAL：
1. Housing material: PC UL94V-0
2. Insert material: Flame retardancy ABS UL94V-0
3. PCB material: FR-4 Thickness:1.6mm
4. Contact material: Phosphor bronze stamp PIN T=0.35mm
5. IDC Contact material: Phosphor bronze T=0.50mm with nickel plating
6. Wire: AWG 24-26
Ordering Information
Product Code | Description | Packaging | Carton Size | GW |

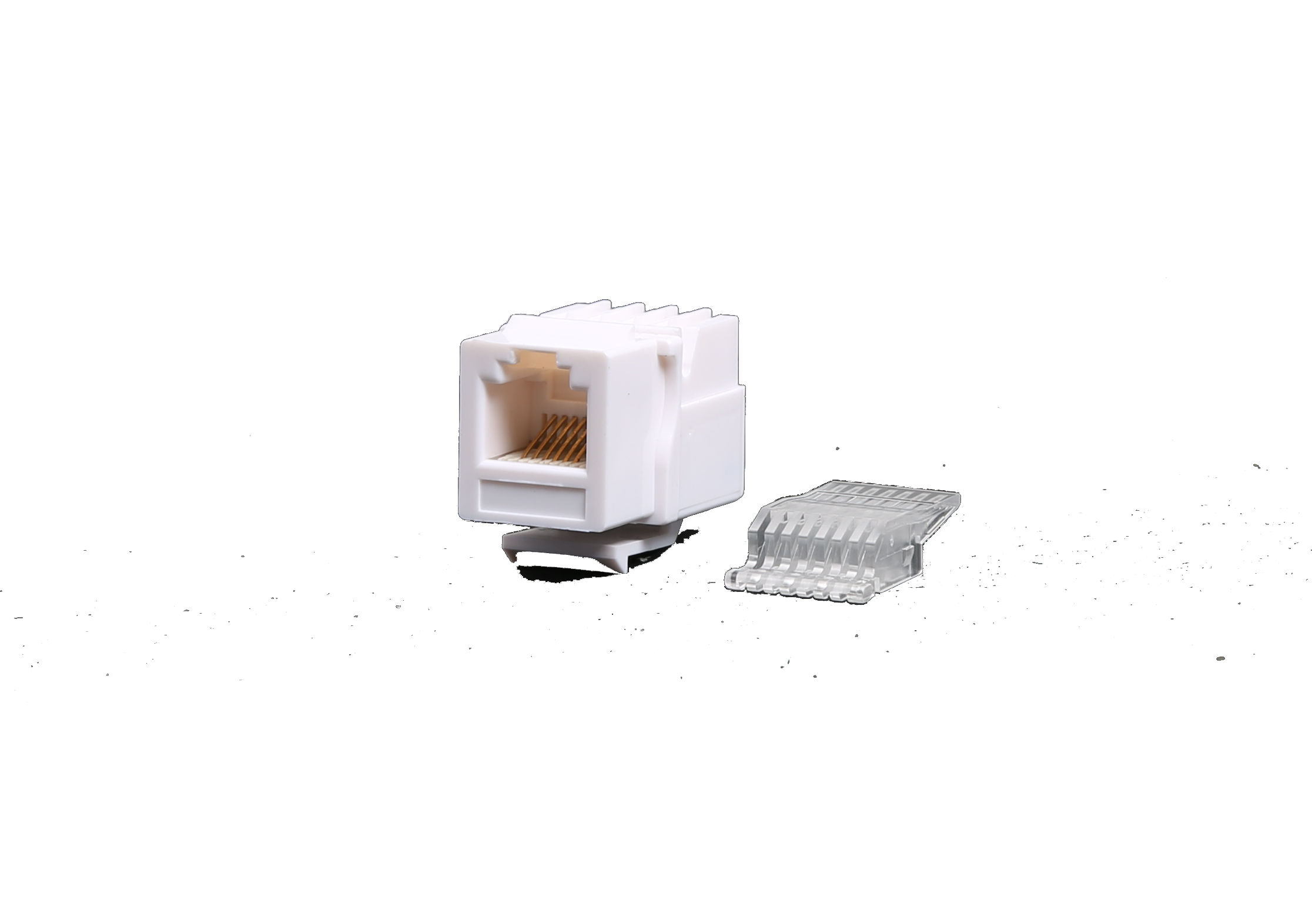

SKJ-223101 | UTP Telephone Jack 6P6C | 500 PCS | 40*29*53 cm | 6.87 kg |
