Product Model

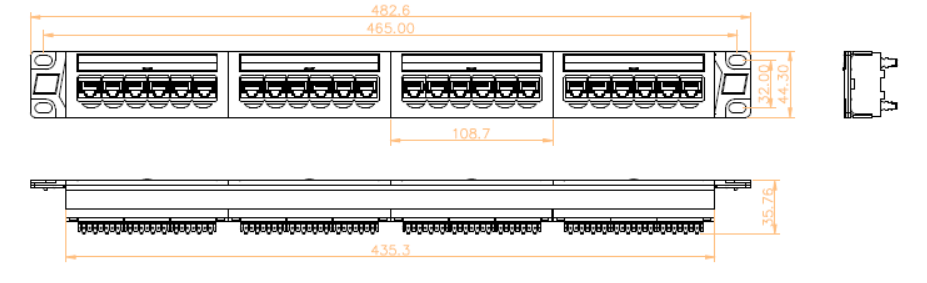

SPP-WC62B1 SPP-W962B1 SPP-W662B1
Product parameters
NOTES:
ELECTRICAL:
1. VOLTAGE RATING : 125 VAC RMS
2. CURRENT RATING : 1.5 AMP
3. CONTACT RESISTANCE : 20 MILLIOHMS MAX
4. INSULATION RESISTANCE 100 MECOHMS MIN 。500 VDC
5. DIELECTRIC STRENCTH : 750 VAC RMS 60Hz,1MIN
6.C6 PERMANENT LINK : CONFORM TO ANSI/TIA/EIA-568 B.2- 1
ENMRONMENTAL
1.STORAGE : -40”TO +70°
2. OPERATION: -10”TO +60°
RJ45 JACKS COMPLY TO REQUIREMENTS OF IEC- 60603-7-5
MATES WITH MODUL AR PL _UG CONFORMING TO FCC PART 68
MECHANICAL :
1.SHIELD MATERIAL : BRASS C2680 T=0.25mm
2.HOUSING MATERIAL: PBT
3.CONTACT MATERIAL: PHOSPHOR BRONZE PL ATING GOLD
4.PANEL FRAME : Zn PLATING
5.IDC MATERIAL : PC,TERMINALPHOSPHOR BRONZE.TIN PLATING
6.RJ45 JACK UFE : 750 TIMES MIN
7.IDC UFE : 200 TMES MIN
8.WIRE : AWG 22~24
9.TIA Cat 6 Perm. Link Test: Worst pair NEXT margin≥3.0dB
10.Retentiveness of insertion structure. 50N 60士5s
Ordering Information
Product Code | Description | Packaging | Carton Size | GW |
SPP-W662B1 | UTP Cat.5e Patch Panel ,24 Port,with Cable Manager | 15 PCS | 53*29*32 cm | -- kg |
SPP-W962B1 | UTP Cat.6 Patch Panel ,24 Port,with Cable Manager | 15 PCS | 53*29*32 cm | -- kg |
SPP-WC62B1 | UTP Cat.6A Patch Panel ,24 Port,with Cable Manager | 15 PCS | 53*29*32 cm | -- kg |
