Product Model
SPP-2C62F11 SPP-2662F11 SPP-2962F11

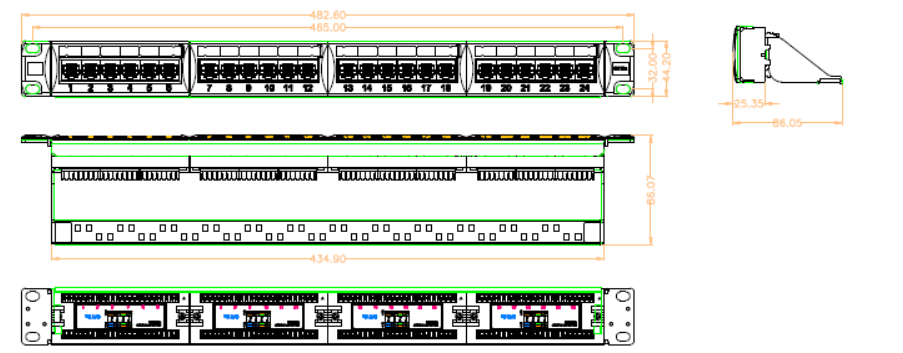

Product parameters
NOTES:
ELECTRICAL:
1. VOLTAGE RATING : 125 VAC RMS
2. CURRENT RATING : 1.5 AMP
3. CONTACT RESISTANCE : 20 MILLIOHMS MAX
4. INSULATION RESISTANCE 100 MECOHMS MIN @ 500 VDC
5. DIELECTRIC STRENCTH : 750 VAC RMS 60Hz,1MIN
6.C6 PERMANENT LINK : CONFORM TO ANSI/TIA/EIA-568 B.2- 1
ENMRONMENTAL
1. STORAGE
2. OPERATION
MATES WITH MODULAR PLUG CONFORMING TO FCC PART 68
MECHANICAL :
1.HOUSING MATERIAL: PBT
2.PANEL FRAME : ST12,POWDER COATING IN BLACK COLOR
3.IDC MATERIAL : PC,TERMINALPHOSPHOR BRONZE.TIN PLATING
4.RJ45 JACK UFE : 750 TIMES MIN
5.IDC UFE : 200 TMES MIN
6.WIRE : AWG 23~26
7.TIA Cat 6 Perm. Link Test: Worst pair NEXT margin≥3.0dB
8.Retentiveness of insertion structure. 50N 60士5s
Ordering Information
Product Code | Description | Packaging | Carton Size | GW |
SPP-2662F11 | UTP Cat.5e Patch Panel ,24 Port,with Cable Manager | 15 PCS | 53*29*32 cm | -- kg |
SPP-2962F11 | UTP Cat.6 Patch Panel ,24 Port,with Cable Manager | 15 PCS | 53*29*32 cm | -- kg |
SPP-2C62F11 | UTP Cat.6A Patch Panel ,24 Port,with Cable Manager | 15 PCS | 53*29*32 cm | -- kg |
