SPP-0992L1 SPP-0692L1

SPP-0692L1 : FTP Cat.5e 1U Patch Panel, 48 Port

SPP-0992L1 : FTP Cat.6 1U Patch Panel, 48 Port

Add List

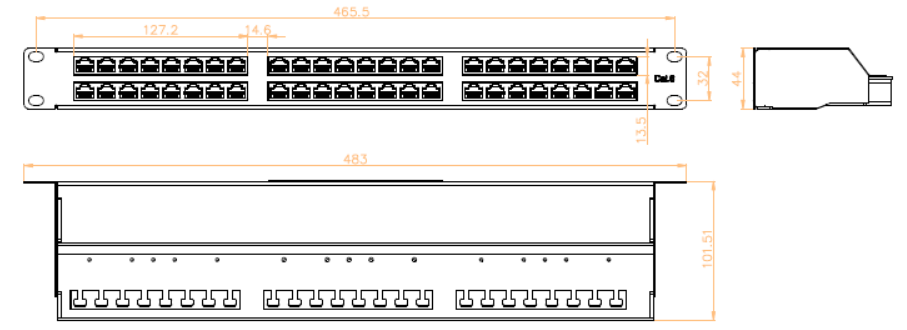

Product parameters

NOTES:

ELECTRICAL:

1. VOLTAGE RATING : 125 VAC RMS

2. CURRENT RATING : 1.5 AMP

3. CONTACT RESISTANCE : 20 MILLIOHMS MAX

4. INSULATION RESISTANCE 100 MECOHMS MIN 。500 VDC

5. DIELECTRIC STRENCTH : 750 VAC RMS 60Hz,1MIN

6.C6 PERMANENT LINK : CONFORM TO ANSI/TIA/EIA-568 B.2- 1

ENMRONMENTAL

1.STORAGE : -40”TO +70°

2. OPERATION: -10”TO +60°

RJ45 JACKS COMPLY TO REQUIREMENTS OF IEC- 60603-7-5

MATES WITH MODUL AR PL _UG CONFORMING TO FCC PART 68

MECHANICAL :

1.HOUSING MATERIAL: PBT

2.PANEL FRAME : ST12,POWDER COATING IN BLACK COLOR

3.IDC MATERIAL : PC,TERMINALPHOSPHOR BRONZE.TIN PLATING

4.RJ45 JACK UFE : 750 TIMES MIN

5.IDC UFE : 200 TMES MIN

6.WIRE : AWG 22~24

7.TIA Cat 6 Perm. Link Test: Worst pair NEXT margin≥3.0dB

8.Retentiveness of insertion structure. 50N 60士5s
