Product Model

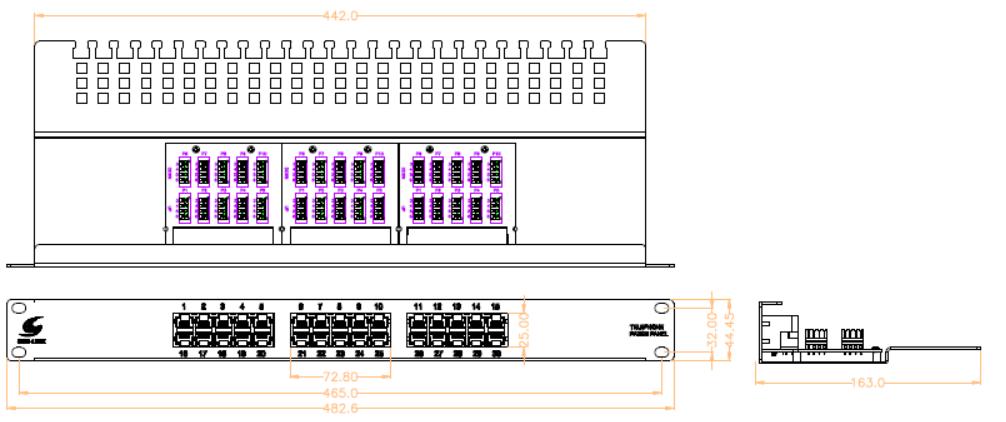

SPP-0BD2L1 SPP-0BD2D1
Product parameters
NOTES:
ELECTRICAL:
1. VOLTAGE RATING : 125 VAC RMS
2. CURRENT RATING : 1.5 AMP
3. CONTACT RESISTANCE : 20 MILLIOHMS MAX
4. INSULATION RESISTANCE 100 MECOHMS MIN 。500 VDC
5. DIELECTRIC STRENCTH : 750 VAC RMS 60Hz,1MIN
ENMRONMENTAL
1.STORAGE : OPERATION: -40”TO +70°
2. OPERATION: -10”TO +60°
3.CONFORM T0 TIA/EIA 568B CATEGDRY 3
4.MATES WTH MODULAR PLUC CONFORMING TO FCC PART 68
MECHANICAL :
1.HOUSING MATERIAL: PBT
2.PANEL FRAME : ST12. POWDER COATING IN BLACK COLOR
3.IDC MATERIAL : PC,TERMINALPHOSPHOR BRONZE.TIN PLATING
4.RJ45 JACK UFE : 750 TIMES MIN
5.IDC UFE : 200 TMES MIN
6.WIRE : AWG 24~26
7.Retentiveness of insertion structure. 50N 60士5s
Ordering Information
Product Code | Description | Packaging | Carton Size | GW |
SPP-0BD2L1 | UTP Telephone Panel, 30 Port,LSA IDC | 15 PCS | 53*29*32 cm | 12.8 kg |
SPP-0BD2D1 | UTP Telephone Panel, 30 Port,LSA IDC | 15 PCS | 53*29*32 cm | 12.8 kg |
